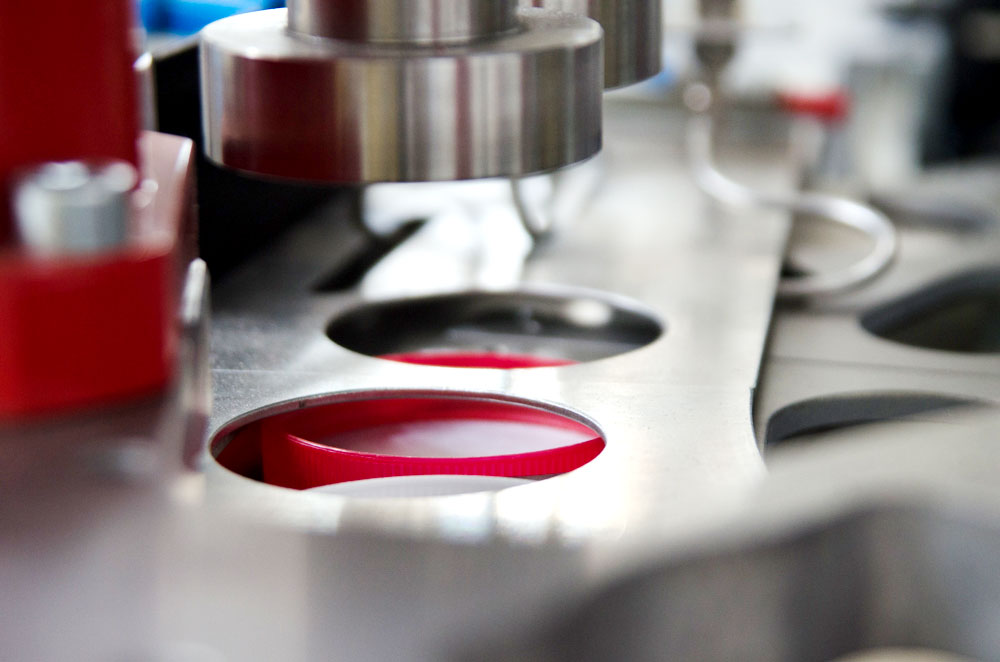

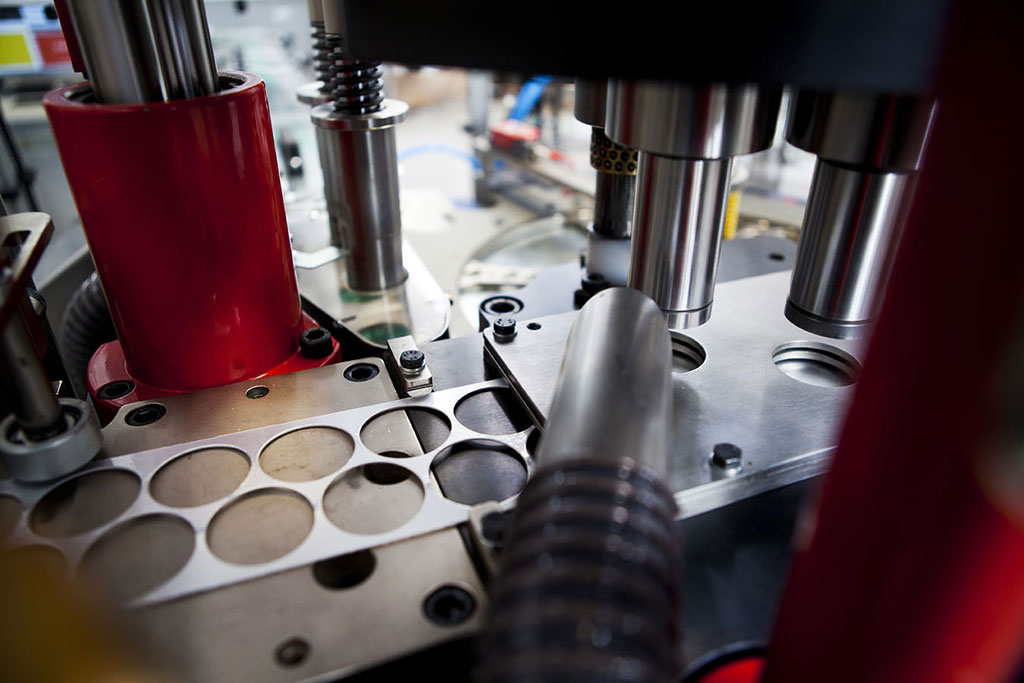

Lamfi lining machines can cut seals directly from tape into all liner shapes: Round, Pull-Tab, Tri-tab, Donut or Ring, either by punching liner from the tape or by Rotary Die Technique which can be fitted onto Version “A” and “C” of all our models

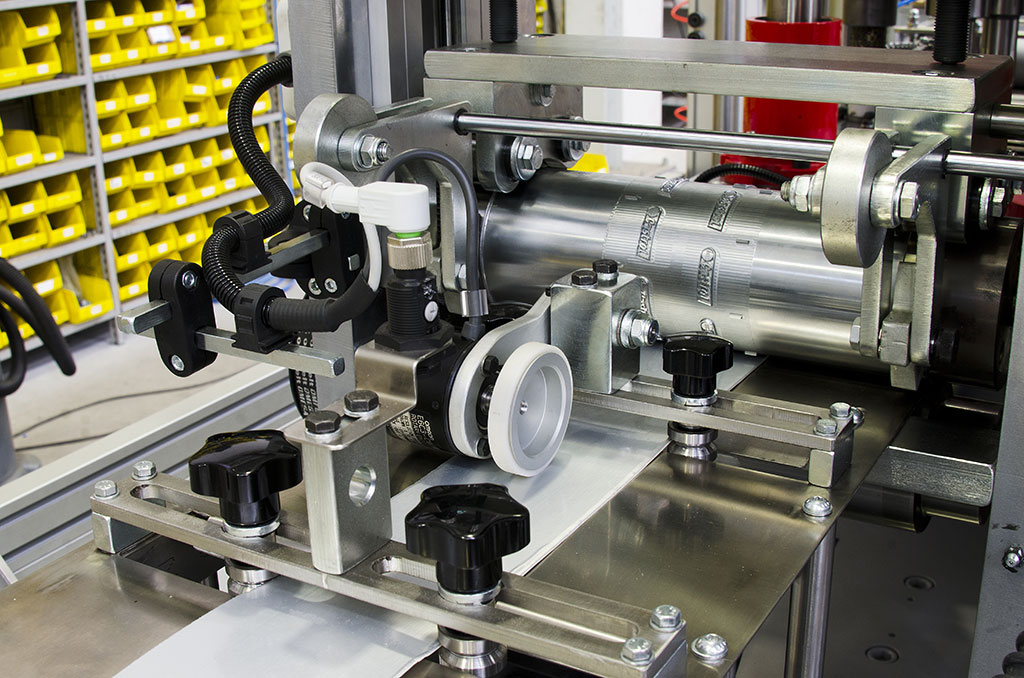

The Rotary Die cut unit can cut any shape of liner leaving it attached to the tape. The liner is then detached and fitted into the closure by the inserting device of the lining machine. Both Punching and RD devices can be installed on our lining units and it is possible to switch easily between the two systems.
The RD unit can be used also to emboss a logo on the liner.
All liner shapes are available:
- Round
- O-ring
- Donut
- Tri-tab
- Pull-tab
Changing tool kit is quick and easy with our "quick set packages"; facilities for video inspection & glue options are available too.
Design and construction is highly customized

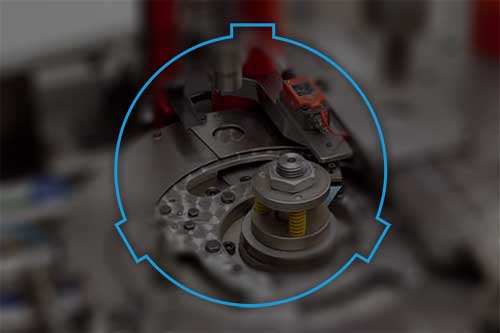

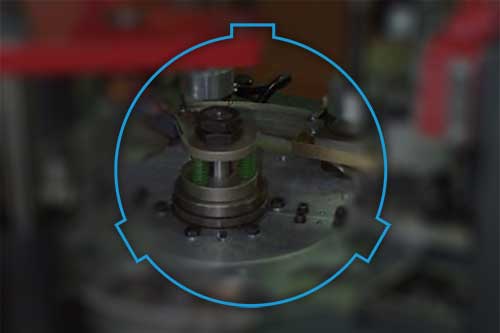

B1-A
Main Features
- Style: Indexing Carousel
- Wadding/lining method: Punching out of the Reel
- Max reachable speed: 12,500 caps/h
- Number of caps processed per each cycle: 1
- Max. cap diameter: 75mm
- Caps handling tools: Replaceable
- Punching tools: Replaceable (Any style)
- Gluing system: Allowed
- Human / Machine Interface: Touch screen
- Installed Powerk: w. 3,0
- Compressed air: 600l/m at 6 bar
Working rate
- 24 hours per day (minus 10 minutes for daily maintenance): production 286.000
- 7 days per week (minus 10 minutes for weekly maintenance): production 2.000.000
- 30/31 days per month (minus 20 minutes for monthly maintenance): production 8.867.429
- 365 days per Year (minus 1 day for annual maintenance): production 103.951.467

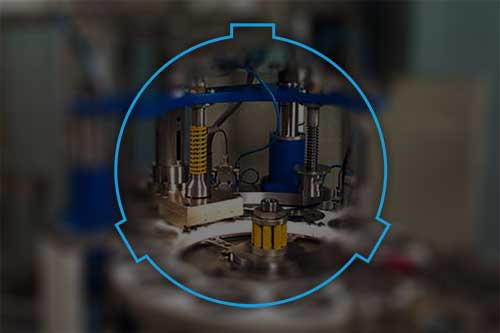

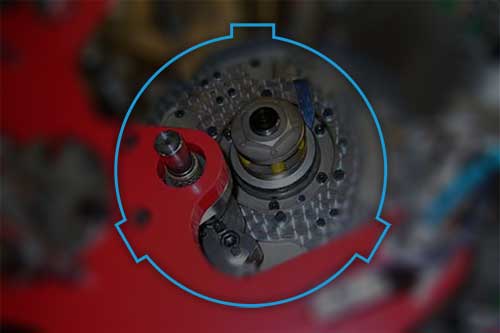

B2-A
Main Features
- Style: Indexing Carousel
- Wadding/lining method: Punching out of the Reel
- Max reachable speed: 12,500 caps/h
- Number of caps processed per each cycle: Variable depending on the cap’s diameter
- Max. cap diameter: 120 mm
- Caps handling tools: Replaceable
- Punching tools: Replaceable (any style)
- Gluing system: Allowed
- Human / Machine Interface: Touch screen
- Installed Power: kw. 3,0
- Compressed air: 600l/m at 6 bar
Working rate
- 24 hours per day (minus 10 minutes for daily maintenance): production 286.000
- 7 days per week (minus 10 minutes for weekly maintenance): production 2.000.000
- 30/31 days per month (minus 20 minutes for monthly maintenance): production 8.867.429
- 365 days per Year (minus 1 day for annual maintenance): production 103.951.467

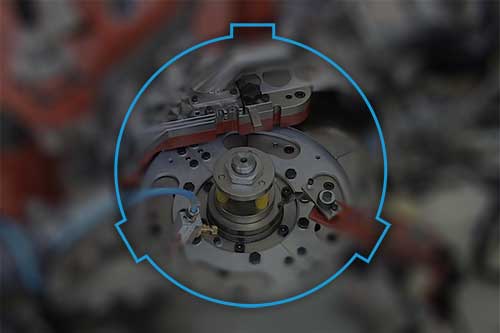

C1-A
Main Features
- Style: Indexing starwheel
- Wadding/lining method: Tape fed
- Max reachable speed: 6,000 caps/h
- Number of caps processed per each cycle: Variable depending on the cap’s diameter
- Max. cap diameter: 120 mm
- Caps handling tools: Interchangeable
- Punching tools: Interchangeable
- Gluing system: Allowed
- Human / Machine Interface: Touch screen (optional)
- Installed Power: kw. 1,0
- Compressed air: Mpa=0.6
Working rate
- 24 hours per day (minus 10 minutes for daily maintenance): production 137.280
- 7 days per week (minus 10 minutes for weekly maintenance): production 960.000
- 30/31 days per month (minus 20 minutes for monthly maintenance): production 4.112.366
- 365 days per Year (minus 1 day for annual maintenance): production 49.896.704

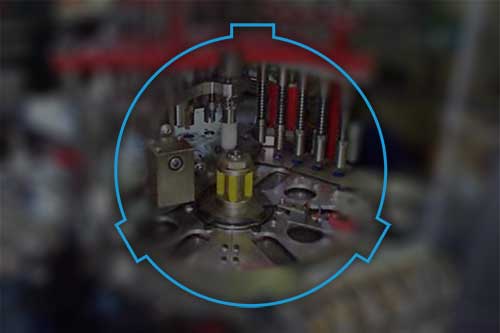

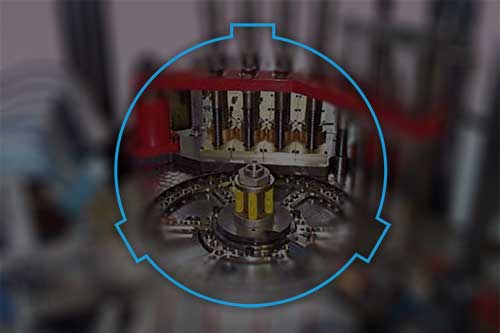

N3-A
Main Features
- Style: Indexing Carousel
- Wadding/lining method: Punching out of the Reel
- Max reachable speed: 12,500 cycles/h
- Number of caps processed per each cycle: Variable depending on the cap’s diameter
- Max. cap diameter: 120 mm
- Caps handling tools: Replaceable
- Punching tools: Replaceable (any style )
- Gluing system: Allowed
- Human / Machine Interface: Touch screen
- Installed Power: kw. 4,5
- Compressed air: 900l/m at 6 bar
Working rate
- 24 hours per day (minus 10 minutes for daily maintenance): production 1.716.000
- 7 days per week (minus 10 minutes for weekly maintenance): production 12.000.000
- 30/31 days per month (minus 20 minutes for monthly maintenance): production 51.404.571
- 365 days per Year (minus 1 day for annual maintenance): production 623.708.800
